Engineers working in high pressure service deal with the same problem all the time. Standard valves usually look fine at installation, but once the system starts cycling or the media carries heat swings or solids, those valves begin to leak or wear down. A high pressure ball valve built for severe service keeps its shutoff far longer because the parts inside are designed to take that punishment.
ValvTechnologies builds severe-service, high-pressure metal-seated valves for steam, slurry, hydrocarbon, chemical process, and gas units. Keep reading to learn more about high pressure stainless steel ball valves.

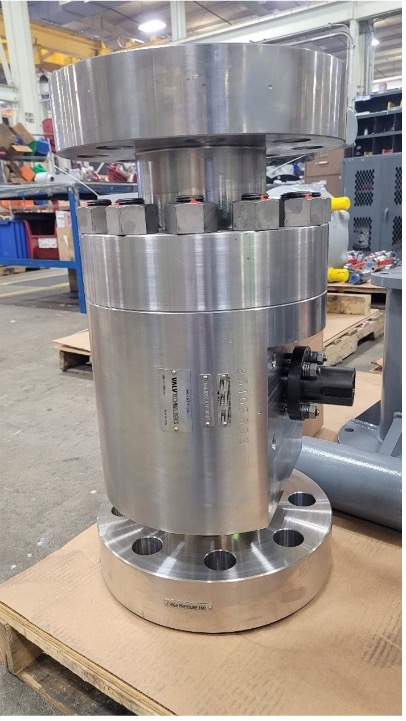

What is a High Pressure Ball Valve?
A high pressure ball valve works like any other quarter turn valve. You rotate the stem, the ball rotates, and flow starts or shuts off. Nothing complicated, however, the challenge is making a valve that can handle hundreds/thousands of cycles without chewing up seats or wearing flat spots into the ball.
Bodies, stems, seats and coatings need to hold up to pressure, heat and cycling. A high pressure stainless steel ball valve adds corrosion resistance while keeping the same shutdown behavior. Many compact valves on the market (carbon steel/SS316) handle moderate hydraulic duty, but they are not built for heavy cycles and abrasive service.
ValvTechnologies’ V1‑4 series takes the idea far beyond that baseline. With forged bodies, metal seats and our proprietary HVOF RiTech coating that hardens the sealing surfaces for abrasive and high energy service, the V1‑4 is engineered for isolation in demanding units where a standard high pressure ball valve or a general purpose high pressure stainless steel ball valve would start to break down.
How High Pressure Ball Valves Work
You turn the handle a quarter turn, the ball rotates and flow either starts or stops. A high pressure ball valve must keep doing this without the sealing surfaces breaking down. Using stainless steel design adds protection against corrosion in harsh media.
These valves use hardened balls, seats,and stems, and the seating surfaces are machined to tight tolerances. This keeps sealing surfaces intact through long service intervals.
High vs. Low Pressure Ball Valves
Low pressure ball valves serve light duty lines up to roughly 200 psi. Once you move into high pressure, abrasive media or higher temperatures, they fall short.
A high pressure ball valve must hold shutoff cleanly and repeatably. Soft seats start to deform in these environments., and are only tood up to ~450°f. Metal seated valves maintain shutdown performance for long periods and at high temperature. When corrosion is an issue, a high pressure stainless steel ball valve gives the added benefit of corrosion resistance while still keeping proper isolation.
You’ll see these valves in hydraulic skids, chemical and petrochemical lines, offshore water systems, mining circuits carrying water or slurry, and gas transmission units
Installation Considerations
A few installation points can save a lot of headaches down the road. Some of this is common sense, but worth repeating.
Before installation
- Confirm the valve matches the pressure class and media.
- Work only on depressurized lines.
- Line up pipes without forcing them so the valve body is not put into bending or side‑load.
- Flush the line to get debris out. Residue can scratch the seats.
During installation
- Do not load the valve body with external stress or vibration from supports or nearby equipment.
- Use proper tools on threaded ends.
- Keep heat away from seals if welding nearby.
- Center flanges before tightening.
After installation
- Cycle the valve to make sure it moves freely.
- Drain the system fully if the fluid is hazardous or hot.
Where High Pressure Ball Valves Fit Best
High pressure systems put valves through tough cycles day after day. ValvTechnologies products stay in service because the metal seats and carbide coatings hold up far longer than softer materials.
Typical uses include isolation on hydraulic skid manifolds, chemical injection lines, bypass points around high-pressure equipment, and steam and slurry isolation in power and mining units.
For selection, the main factors are pressure class, media and temperature. Our experts can help match the valve to the service without trial and error.
Ready to Strengthen Your System Performance with ValvTechnologies?
ValvTechnologies is a trusted valve manufacturer of valves for long service, tight shutoff and heavy industrial duty. Every one of our products reflects experience gained in some of the harshest operating environments. We have an extensive installed gbase of our own designed and manufactured trunnion ball valves, slurry valves, check valves, coking valves, switching valves and much more. We even offer valve service and repair out of our Houston, TX center.
To review specifications or request support for your system, contact our technical team.
