High energy piping units see pressure swings, trips, and thermal shifts that expose weak points in a relief device. Springs relax, seats wear, leak paths form, setpoints move and blowdown widens.
Electronic relief control removes that drift by using direct pressure measurement and logic based actuation. Paired with a severe service metal seated valve, it provides stable relief without a secondary leak path.
How Electronic Relief Valves Operate

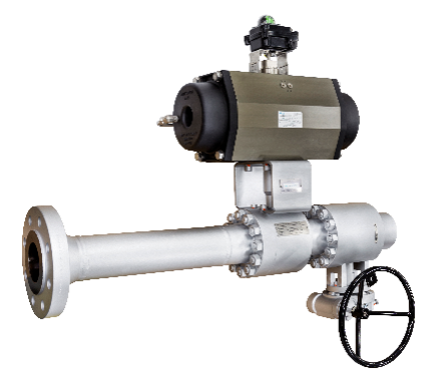

Electronic relief valves use a pressure transducer, controller, actuator, and a severe service valve body. The transducer reads system pressure, the controller compares it to the setpoint, and the actuator opens the valve when the setpoint is reached. The valve then reseats at the programmed threshold.
This removes the variability found in mechanical springs and supports accuracy when the valve body holds its geometry.
Limits of Conventional Relief Devices
Mechanical relief valves can serve many units, but they introduce challenges when service becomes abrasive, high temperature or cycling:
- Seat wear increases leakage.
- Springs relax and shift the setpoint.
- Hysteresis widens blowdown.
- Vent-to-atmosphere arrangements waste steam.
- Cycling duty reduces accuracy.
These limits carry operational cost. They also create uncertainty for units that require precise control. (That’s the whole point.)
Severe Service & Electronic Relief
Electronic relief accuracy will depend on a valve that holds its geometry under heat, pressure, cycling, and abrasive service. Electronic controls cannot compensate for a body that leaks or distorts. Simple as that.
A severe service metal seat design can provide that stability. Carbide coated sealing surfaces, high-load body joints, live loaded packing, and solid body construction allow the valve to open, relieve and reseat cleanly.
Engineer’s note: Steam lines can swing hundreds of degrees within minutes. Designs using soft materials or loose tolerances lose repeatability under these conditions.
Standard valves wear faster, leak sooner and drift from their setpoint, reducing accuracy.
Performance Advantages in Real Operations
Electronic relief provides:
- Tight setpoint control that reduces steam loss
- Fast response to transients
- Consistent behavior under cycling
- Zero leakage isolation that simplifies compliance testing
Engineer’s note: Accuracy holds only when the valve can cycle thousands of times without dimensional change. Wear at the seat / stem weakens repeatability.
Selecting an Electronic Relief Valve for Severe Service
Engineers who are preparing for vendor discussion should define the service conditions driving relief selection. These can shape material choice, actuation method and protection approach. Engineers will evaluate:
- Pressure class up to ASME / ANSI 4500
- Material compatibility
- Cycle frequency and temperature swings
- Media abrasion level
Units in these materials (with weld end or flanged connections) are available with SIL, ASME B16.34, PED and nuclear qualifications.
Standards & Compliance for Electronic Relief Service
Electronic relief devices must align with plant protection rules. These assemblies meet the previously mentioned requirement. When a Section I application requires a V Stamp, the ERV can serve in a capacity relieving role with documented accuracy.
Engineers review how the ERV fits into the protection philosophy, such as independent protection layers, HIPPS arrangements, or high accuracy control upstream of a mechanical relief device.
Safety Instrumented System Considerations
Electronic relief can function within a safety instrumented architecture. Teams review 1oo1, 1oo2 or 2oo3 arrangements based on required availability and risk reduction. Diagnostic coverage and proof test intervals influence the SIL assignment.
In practice, performance is validated under field conditions. Zero leakage isolation simplifies testing because seat / stem drift does not need compensation in the logic solver.
Performance Demonstration & Test Protocols
Accuracy and zero leakage will require verification. Electronic relief valves undergo cycle endurance tests, valve leakage tests, envelope tests and setpoint accuracy checks.
Engineer’s note: Accuracy depend on stable geometry across the full temperature and pressure envelope. Wear at sealing surfaces shifts the relief threshold.
These results support risk assessments and compliance documentation.
Why Choose ValvTechnologies for Electronic Relief Control
Electronic relief first depends on a valve that stays stable under heat, pressure, and cycling. This design holds its seal, resists oxide erosion, and keeps the relief threshold steady over long periods.
Plants use this approach because it keeps working when standard bodies begin to move or leak. It reduces retests, limits shutdowns tied to drift, and supports predictable operation.
For specifications or actuator options, visit the ValvTechnologies website or contact our trusted engineering team.
