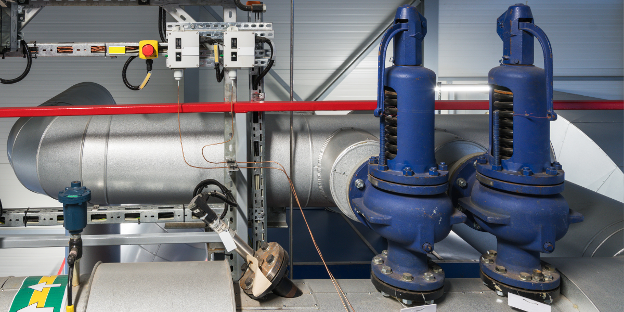

Engineers working in demanding process environments rely on relief devices such as the pressure relief valve and safety relief valve to react with predictable lift and reseat behavior. These actions shape the pressure profile that upstream and downstream isolation valves must tolerate. A clear view of how each device responds helps engineers judge system behavior and select isolation valves built for long term performance.
What is a Pressure Relief Valve?
A PRV opens in a controlled, proportional manner as pressure rises above its set point. This supports applications that need steady relief flow instead of a sudden shift.
How a PRV behaves
A PRV relieves pressure once a defined limit is exceeded and recloses as conditions return to normal. Many PRVs allow adjustment within a defined range. Most use a spring mechanism that produces repeatable lift behavior.
- Begins lifting slightly above the set pressure
- Opens proportionally as pressure increases
- Reseats after pressure falls below the blowdown range
The modulating lift profile helps maintain steady operation where abrupt pressure changes would introduce instability.
What is a Safety Relief Valve?
A Safety Relief Valve (SRV) is designed for rapid, full lift as soon as the set point is reached. This snap action response is well-suited for compressible media that can generate steep pressure rise.
How an SRV behaves
- Remains closed until the set pressure is met
- Pops fully open, providing immediate discharge capacity
- Closes once system pressure returns below the reseat point
The fast response helps protect equipment experiencing sharp, sudden pressure excursions.
How to tell them apart
The distinction centers on the opening profile. PRVs lift in a controlled manner. SRVs use a pop action. Both close again once pressure normalizes though some designs may not fully reseat depending on service conditions.
Various relief device designs exist, including spring loaded and pilot operated units. The descriptions here follow the behaviors most often referenced across industry.
When each is applied
Pressure relief valves:
- Liquid service
- Mixed phase service
- Systems that benefit from controlled lift
Safety relief valves:
- Gas or vapor service
- Systems prone to fast pressure rise
- Situations needing immediate full lift
Points to consider during selection
Relief devices follow established testing programs that verify opening accuracy and flow capacity. These programs help confirm correct valve behavior during an overpressure event.
Installation conditions also influence performance. Some systems route multple relief devices to a common header, and both inlet losses and discharge backpressure can affect lift characteristics. Engineers typically review:
- Medium in the line
- Set pressure and blowdown requirements
- Required flow capacity based on expected scenarios
- Orientation and accessibility for valve maintenance
Discover ValvTechnologies Solutions
Relief devices manage pressure events, but isolation valves are responsible for containing those events without degradation. Severe service systems demand valves that eliminate leak paths, maintain seating force through thermal and mechanical shifts, and deliver repeatable shutoff through extended operating cycles.
ValvTechnologies is a valve manufacturer supplying zero leakage metal seated isolation valves engineered for long service life in demanding applications. Our coating processes, seat designs, and proven severe service construction support stable system behavior when paired with relief devices, providing consistent isolation before during and after upset conditions.
Isolation valves and automated packages are designed for durability, tight shutoff and predictable performance. For systems that incorporate relief devices, stable and reliable isolation supports safer operation and planning during design and maintenance.
For support with severe service valve selection or application questions, contact ValvTechnologies today.
