• Fully bi-directional isolation. Benefit: outstanding operating flexibility
• Long service life – sealing surfaces are overlaid with tungsten or chromium carbide cermets using our exclusive HVOF RiTech® process. Benefit: allows for exceptional resistance to attack by abrasives and fluids
• Stem, discs and guides overlaid with tungsten or chromium carbide cermets using our exclusive HVOF RiTech® process. Benefit: extra protection delivered
• The sealing surfaces are coated with chrome-carbide hardcoating to RC 72 hardness, then diamond lapped for a precision fit. Benefit: The exceptional hardness and temperature ratings to 1800°F make our valves extremely resistant to attach of abrasives and fluids, particularly steam and flashing water
• Designed for ease of maintenance. Benefit: The only requirement is for the disc to be flat against the seat. This is easily accomplished as there are no precise angles to maintain. Pressure seal bonnet has been designed to facilitate easy removal when necessary.
• Protected seats. Benefit: In the full open position, the flow through “conduit” is positioned precisely between the seats, eliminating turbulence and flow impingements on the seats. There is no gap between our conduit and the valve seat. Small gaps in our competitors’ valves cause extreme turbulence and in come cases cavitation.
• Self-cleaning. Benefit: Frequent valve usage polishes the surface for less torque and improved sealing. The high spring load insures contact throughout the stroke of the valve and prevents particulates migrating between the disc and seat also helps assist in the honing action.
• Various flow control options, including a v-port orifice. Benefit: This is ideal for warm-up and some bypass requirements
• Stem extensions. Benefit: Because of the low break-away and running torque, various stem extensions are available so that handwheels and actuators can be located remote from the valve
• Tight shutoff. Benefit: As a standard, ValvTechnologies meets zero-leakage requirements on low-pressure air and high-pressure water
• High spring load. Benefit: ValvTechnologies’ very high spring load not only assures contact between the gate and seat, but at all positions from open to close. This allows zero-leakage on hydrogen on vacuum.

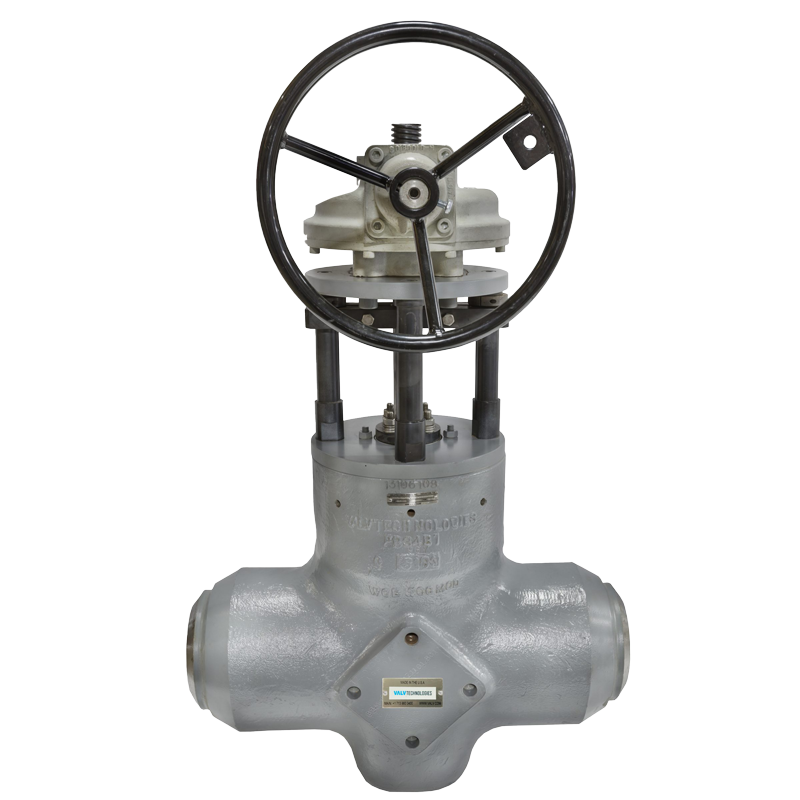

• Parallel discs. Benefit: Unlike conventional designs where the discs are only parallel in the closed position, IsoTech® valves are designed to maintain its parallel discs from both the fully-open to the fully-closed position.
• Oversized stem diameter in comparison to other PSG designs along with or in combination with the tee-slot as opposed to a threaded and pinned hanger. Benefit: Increased reliability with this durable, robust design

Case Study: Parallel Slide Gate (PSG) – Proven Success in Single Isolation

Location: England
Plant type: Coal power station
Product: PSG – Parallel Slide Gate

Background: A UK plant situated near the town of Selby, England, is the largest, cleanest and most efficient coal burning power station in the United Kingdom. Its generating capacity is 3,960 megawatts and at current output levels generates enough electricity to meet the needs of seven percent of the United Kingdom. This plant, greatly concerned about the environment, focuses on a low-carbon economy, a concept that refers to an economy which has a minimal output of greenhouse gas emissions into the biosphere, but specifically refers to the greenhouse gas, carbon dioxide (CO2). Understanding their very important role in the transition towards a low-carbon economy, this plant is committed to reducing emissions and have various projects ongoing which will deliver significant savings.

Requirement: ValvTechnologies’ UK distributor, International Procurement Limited (IPL), specialized in the supply of critical and severe service valve isolation solutions. In 2004, IPL began supplying ValvTechnologies V1-1 metal seated severe service ball valves for problem areas such as drains and bypasses for the power station. Because of the longevity and reliability of the isolation provided on the drains and by-passes, the plant began to use the ValvTechnologies products in other applications in the power station.

During 2007 and 2008, IPL supplied a number of 12, 14, 18 and 20” diameter, PSG valves for units one-three on the feed system (replace with Feed Puml and Feedwater system).

Solution: The valves proved successful in providing single isolation, which allowed maintenance to be carried out on tube leaks without shutting down the entire system. IPL has since supplied 8” and 10” diameter PSG valves to Drax Power taking the total number of units to 36. The ValvTechnologies’ zero-leakage valve range is the premier solution where isolation is required for critical and severe service applications, providing increased safety and reliability, while reducing emissions, contributing to a cleaner environment.

Case Study: ValvTechnologies’ IsoTech® PSG Valve – Reducing Total Cost of Ownership

Product: IsoTech® parallel slide gate valve
Location: Ontario, Canada
Plant type: Two-on-one combined cycle power plant
Industry: Fossil power
Application: HP steam-main steam stop

Background: The plant had two main steam isolation parallel slide gate valves (PSG’s) installed in this application. Design pressure and temperature for the application is 2350 psig at 1050°F (162 bar at 566°C). They were experiencing severe leakage when valves were required to isolate. From initial plant start-up, the frequency of valve maintenance of up to twice per year per valve. The cost of $40,000 per repair, was a particular concern for the plant. These repairs were strictly limited to disassembly, cleaning and visual inspection, grinding the seats and discs and reassembly. Well before the plant anticipated they were faced with having to replace valve seat rings and discs. The plant management decided to look at their alternatives for an upcoming outage.

Requirement: The plant installed two 12” 2500# C12A ValvTechnologies’ IsoTech® parallel slide gate valves during their spring 2014 outage. The IsoTech® valve was the perfect remedy, as it utilizes a RiTech® chrome carbide hardcoating on the disc and seats, providing a more robust, stable sealing surface at elevated temperatures.The IsoTech® valve is a through-conduit, position-seated design, which protects the valve seats from the flow stream, resulting in a valve that provides zero-leakage and requires zero-maintenance. ValvTechnologies is so confident in its ability to withstand demands of steam isolation, that they back the valve with a four-year performance warranty.

Solution: The valves have been installed and in-service for over two years and have experienced over 270 cycles with zero maintenance required. The valve’s ability to provide zero-leakage has resulted in drastically reduced downtime, which combined with the maintenance cost savings, has presented a two-year return on investment (ROI) on the original purchase/installation cost.

Drax Power Station – Heat rate efficiency and lower emissions

Severe service isolation valve leakage significantly reduces a plant’s heat rate performance, because millions of BTU’s leak away through hundreds of valves, and never reach the turbine. With ValvTechnologies’ zero-leakage severe service isolation valves, less fuel is burned to produce megawatt’s, which leads to lower emissions ultimately lowering costs. Turbine isolation and the parallel slide gate valve.

Steam turbine damage by water induction is a costly economic, safety and major reliability concern. It is essential to have high quality reliable valves to isolate a turbine. ValvTechnologies’ IsoTech^® parallel slide gate valve (PSG) addresses the need for true in-line repairability in large diameter, high-energy piping systems specifically designed for steam and feedwater applications.

Various bypass configurations

Delamination Guarantee + Four-Year Zero-Leakage Warranty

BACKGROUND: Delamination is the separation of the Alloy 6 or 21 hardfacing from the substrate and is believed to be caused by a sigma phase formation typically found when applied to F91 or C12A materials. This results in catastrophic destruction of the seat seal allowing the migration/liberation of the hardfacing, jeopardizing downstream components. The industry first learned of Alloy 6 delamination in a large valve designed for high-pressure/high-temperature steam service at the 2009 7F Users Group conference. 7F Users Group, Inc. is organized to provide an open forum through conferences and technological aids to the owners/operators of the GE 7F combustion turbine generator systems for effective communication, discussion and information dissemination regarding the operation, maintenance, inspection, troubleshooting and repair of such systems to maximize equipment performance and reliability

An alert concerning Alloy 6 liberation came from GE Energy, which issued Technical Information Letter 1626 on January 30, 2009. It advised steam-turbine owners to check the condition of the Alloy 6 inlay sections used in fabricating seats for the OEM’s combined stop and control valves. Guidelines and Specifications for High-Reliability Fossil Power Plants, 2nd Edition “Best Practice Guideline for Manufacturing and Construction of Grade 91 Steel Components”, was introduced in June 2015 by The Electric Power Research Institute (EPRI).

SOLUTION: ValvTechnologies’ IsoTech® parallel slide gate valves are built specifically for modern-day severe service power applications where temperatures exceed 1000˚F (538˚C). Our RiTech® 31 hardcoating technology is impervious to the effects of high temperature cycling typically seen in combined cycle power plants in main steam isolation and hot reheat applications. ValvTechnologies guarantees that our IsoTech® parallel slide gate valve, provided with our recommended RiTech® 31 hardcoating for use in high-pressure and temperature, super-critical and ultra-super critical applications, will not delaminate for 10 years or 10,000 cycles – whichever comes first.

REMEDY:In the unlikely event the RiTech® 31 hardcoating delaminates from the substrate as described above, ValvTechnologies will provide the necessary labor, supervision and tooling to replace the defective components limited to the discs (2) and seat rings (2), either in situ or in a controlled shop environment. This guarantee is in addition to our standard Four Year, Zero-Leakage warranty. ValvTechnologies makes no warranty of any kind whatsoever, expressed or implied, other than as specifically stated herein.

Standard four-year, zero-leakage warranty in steam and water applications available in addition to the ValvTechnologies’ Delamination Guarantee.
