TrunTech® Trunnion Ball Valves

Click Image to Enlarge
Technical Data
Sizes
2 - 36"
Pressure Classes

ANSI 150 – 2500, 5K, 10K

In Compliance

API-6D (ISO-14313)
API-6A
Fire-safe per API-607 (API-6D)
Fire-safe per API-6FA (API-6A)
Tight-shut-off per ISO-5208 Rate A (API-6D)
Tight-shut-off per PSL-3 (API-6A)
ASME B16.34
NACE MR-01-75
ISO-15156

End Connections

ANSI raised-face flange – standard
ANSI ring type joint flange – standard
Other end connections available upon request

Shutoff

Absolute zero-leakage at test. ISO 5208 rate A.

The Next Generation in Trunnion Technology™.

ValvTechnologies’ TrunTech® is designed to address the severe service demands of the upstream and midstream oil and gas industries. Its protected seat seals design provides long life and tight shut-off in abrasive / erosive conditions and meets stringent fugitive emission requirements.

TrunTech® is designed to API-6D and API-6A, fire-safe per API-607 (API-6D) and API-6FA (API-6A), tight-shut-off per ISO-5208 Rate A (API-6D) and PSL-3 (API-6A).

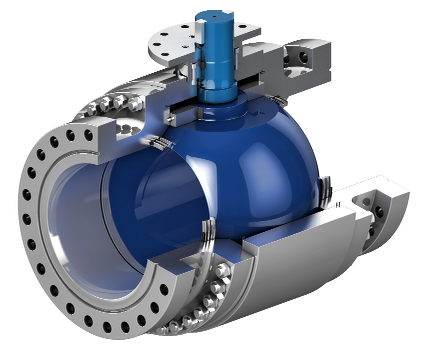

Screen-Shot-2013-07-10-at-1.08.30-PM

  1. Carbide sealing surfaces. The sealing surfaces are overlaid with tungsten or chromium carbide using the ValvTechnologies-exclusive HVOF RiTech® coating process. These surfaces have a hardness of 68 – 72 Rc to allow long periods of operation in the most severe conditions.
  2. High integrity seals. To prevent leaks around the seats, ValvTechnologies has developed an innovative double seal design for erosive services operation in high cycling applications. A secondary graphite seal is installed toward the body cavity.
  3. Solids resistance. In addition to the carbide coatings which will allow the valve to function in highly abrasive applications, the individual valve parts have additional seals to prevent interference from solids in the system. This provides for outstanding service in severe-service isolation applications with high particle content from sand, elemental sulfur, hydrate, perforation shrapnel and pipe corrosion products.

  • Guaranteed tight shut-off. Benefit: Enhanced process safety and repeatable sealing allows operation under process excursions
  • True metal-to-metal sealing without using secondary elastomeric seals. Benefit: Inherent fire safety
  • Solid-proofed by design. Benefit: Process reliability
  • Exclusive HVOF RiTech™ coating technology. Benefit: Extended life
  • Grafoil® fire-safe seals. Benefit: Reduced maintenance costs
  • Double block-and-bleed capability. Benefit: Enhanced process safety
  • High cycling capability. Benefit: Process reliability
  • Bi-directional sealing by design. Benefit: Enhanced process safety, lower maintenance, less downtime
  • Single-piece anti blow-out stem design. Benefit: Enhanced process safety
  • Impervious to high thermal cycling. Benefit: Enhanced process safety
  • Certified to use in SIL 3 loop. Benefit: Enhanced process safety
  • Fire safe certification: API-607 / API 6FA. Benefit: Enhanced process safety
  • Stem fugitive emissions per ISO 15848-1 Class B & TA-Luft. Benefit: Lower emissions, enhanced process safety

Case Study: HIPPS

hippsBackground: The customer placed a large order for High Integrity Pressure Production Systems (HIPPS) trunnion valves, which were 8” class 2500. The scope was a total of 20 valves which were needed for the expansion of their gas field. Their excellent experience with ValvTechnologies’ on a previous order influenced them to choose our services again.

Requirement: The traditional method to provide protection against over pressure is a safety relief valve (SRV). Per code, the SRV needs to have a capacity equal to the well capacity without any restriction in the choke. This can become impractically large. Protection with SRV-s numerous drawbacks, which include:

  • Potentially impractical size or number of parallel SRV-s
  • Potential continuous leakage if the set point and operating pressure are close, like in this application where that delta in the pressures is only 50 psi
  • Capital cost of flare, possibly with burner
  • Nuisance to the environment of flare noise and the visual effect of the burner flame
  • Emission of methane and CO2. Both are greenhouse gases

Solution: HIPPS provide the same function as a relief valve, but instead of relieving the high pressure gas to atmosphere the HIPPS shuts in the pressure and contains the high pressure gas upstream of the lower pressure section of the piping.

The pressure transmitters forward the pressure signal to the logic solver. The program logic provides the set point and the voting rule. For example, the system may be based on closing the HIPPS if any two of the three pressure transmitters detect a pressure above the set point.

Upon closing of the HIPPS valves the down stream pressure is likely drop below the pressure safety threshold. Nevertheless, the HIPPS valves do not automatically re-open. Instead, a local, manual reset feature needs to be engaged forcing the operator to do a local, visual inspection and correction of the issue that caused the over pressure before allowing flow to restart. A key feature of HIPPS is the ‘spec break’, the transition from the high pressure piping to the lower pressure system. The spec break is indicated on the P&ID near the second HIPPS-valve.

Most importantly, a HIPPS is tightly regulated system, subject to regulatory oversight and stands alone to protect a piping system against over pressure and consequent potential for catastrophic failure, loss of life, loss of assets and damage to the environment.

  • Purge connection
  • Sealant injection
  • Other options available – contact manufacturer for more information

HIPPS
ESD
Scraper receiver isolation
Molsieve switching
Manual isolation
Injection
Gas storage (withdrawal)
Gas transmission
Other gas treatment processes
