V1-R: 5/8” – 4”
Our trusted V Series valve, now with ease of maintenance.

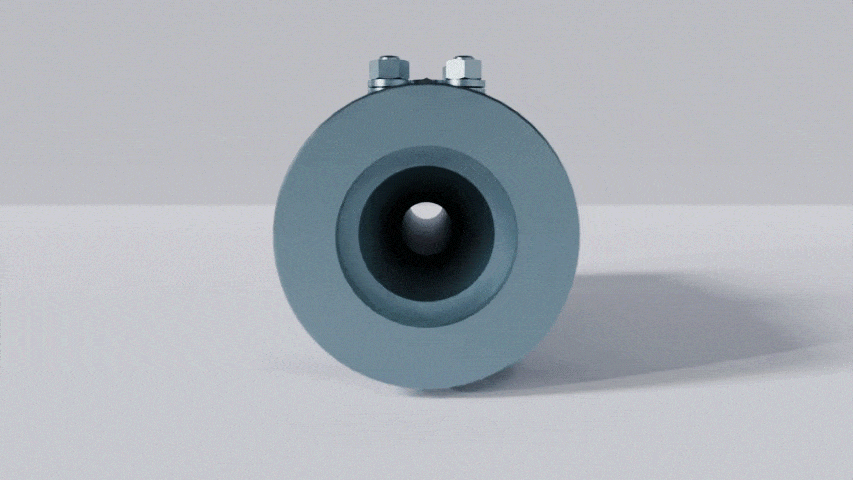

ValvTechnologies V Series valves are engineered to be leak-free and have a position-seated design, ensuring optimal flow while reducing overall cost of ownership. The new V1-R valve has a 4-piece assembly that allows for removal of the valve body and end cap, while the end connections remain in-line. Maintenance can now be made without the need for cutting or welding.
The new V1-R: experience enhanced performance, reduced downtime, and seamless service, all in one innovative solution.
Technical Data
Sizes
5/8” – 4”
Pressure Classes
ASME / ANSI Class 3100
Materials of Construction
Carbon steel (A105) – Standard
Alloy steel (F22, F91) – Standard
In Compliance
ASME B16.34
PED
Nuclear ASME III Class 1, 2 and 3
Nuclear Safety Related – 10CFR50 Appendix B
SIL
End Connections
Socketweld, Buttweld – Standard
Shutoff
Absolute Zero-Leakage Shutoff
- Simplicity of design: 4-piece valve assembly designed for ease of removal while connections remain inline. Field testable after repair, prior to insertion
- Through conduit design: No tortuous flow path. When open it has the highest possible Cv’s
- Fixed position: Quarter turn: no seating torques required.
- Hardened blowout proof stem: One piece, inserted through the body & shouldered
- Metallic body seal ring: Increases body integrity by eliminating external leakage.
- Live load packing gland: Minimum four bolt configuration with shallow stuffing box. Ensures consistent torque at variable pressures & temperatures
- Hard coated & mate lapped seats: High Velocity Hydrogen Fuel (HVHF) chrome carbide hard coating with Rockwell C of up to 72. Mate-lapped seats
- Seat designs: Hard coated, both ball and integral downstream seat to the end-cap to eliminate a potential leak path
- Stringent testing: Every valve is tested, documented, and serialized
- Four-year warranty: The very best in the industry. Covers internal seat leakage as well as external through the packing and/or body seal.
- 4-piece assembly that allows for removal, while end connections remain in-line. Maintenance can now be made without the need for cutting or welding. Benefit: Increased efficiencies, ease of use, reduced maintenance costs
- Through conduit design: No tortuous flow path. When open it has the highest possible Cv’s. Minimized wear & tear. Benefit: Minimized wear & tear, reduced vibration, reduced maintenance
- Fixed position – quarter turn: No seating torques required. Benefit: Improved safety
- Hardened blowout proof stem: One piece, inserted through the body & shouldered. Eliminates the weak link of collared & pinned designs. Benefit: Improved safety
- Metallic body seal ring: Increases body integrity by eliminating external leakage. Benefit: Improved reliability, zero-leakage shutoff
- Live-loaded packing gland: Minimum four bolt configuration with shallow stuffing box. Ensures consistent torque at variable pressures & temperatures. Benefit: Increased reliability
- Hardcoated & mate lapped seats: High Velocity Oxygen Fuel (HVOF) RiTech® chrome carbide hardcoating with a Rockwell C of up to 72. Mate-lapped seats.
Benefit: Wear & corrosion resistant, increased reliability, zero-leakage shutoff - Seat designs: Hardcoated, both ball & integral downstream seat to the end-cap to eliminate a potential leak path. Benefit: Increased reliability
- Stringent testing: Every valve is tested, documented & serialized. Benefit: Increased reliability, increased safety, total traceability
Fossil Power Applications
- Above and below seat drains
- Ash handling
- Attemporator spray control
- Boiler drains
- Boiler feed pump isolation
- Continuous boiler blowdown
- Electronic relief
- Feedwater heater drains
- Feedwater isolation
- Instrument isolation
- Main steam stop
- Recirculation
- Seal steam regulators
- Sight/gauge glass drains
- Soot blower regulators
- Startup vents
- Steam dump
- Turbine bypass systems
- Turbine drain
Nuclear Generation Applications
- Boiler feedwater
- Circulating water system
- Component cooling
- Condensate extraction
- Condensate cooling water
- Emergency feedwater
- Fire protection system
- HP safety injection
- HP & LP heater drains
- Heat exchanger vent & drains
- Main steam system isolation, drain & vent
- Power operated relief valve (PORV)
- Pressurizer drain & vent
- Rad waste system
- Reactor coolant pump drain & vent
- Reactor head vents
- Reactor water cooling vents & drains
- Safety injection system
- Secondary system isolation, drain & vent
- Service water system isolation
- Steam generator system
- Turbine by-pass
- Turbine drain & vent
- Fukushima tie ins
- Reliable hardened vents
