Xactrol® Mark I Valves

Click Image to Enlarge
Technical Data
Sizes
½ - 36 “
Pressure Classes

ASME / ANSI Class 150 – 4500

Materials of Construction

Carbon steel (A105, A216 WCB) – standard
Alloy steel (F22, F91, A217 WC9, A217 C12A) – standard
Stainless steel (316H, A351 CF8M) – standard
Duplex steel
Exotic alloys
Other materials available upon request

In Compliance

ASME B16.34
PED
Nuclear ASME III Class 1, 2 and 3
Nuclear Safety Related – 10CFR50 Appendix B
SIL

End Connections

Socketweld – standard
Buttweld – standard
Raised- face flange – standard
Other end connections available upon request

Engineered for Precision.

ValvTechnologies’ Xactrol® Mark I is designed to limit the maximum flow condition. To reduce the flow rate, simply start closing the valve. The Xactrol® Mark I is the solution for drain legs.

For more information, please contact:

Julie Bodine

Director of Global Marketing & Communications
jbodine@valv.com

More Posts - Website

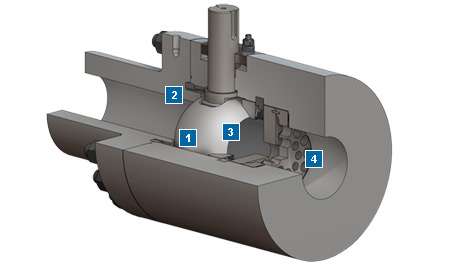

Xactrol cutaway pic 3

  1. Integral Metal Seat. With our exclusive HVOF RiTech® coating process, the integral seat in ValvTechnologies’ rotary operating valves are resistant from the attack of abrasive magnetite or ferrous oxides in the steam flow.
  2. Body Seal Ring. ValvTechnologies employs a field proven seal ring technology to ensure sealing under all operating conditions, up to 1400°F. The body seal ring is loaded at a pressure higher than 20,000 psi. In addition, valves sized 3″ and above contain a secondary Grafoil seal to further guarantee reliability
  3. Patented Coating Process. The sealing surfaces are overlaid with tungsten or chromium carbide using our exclusive HVOF RiTech® process. These surfaces have a hardness of 68 – 72 Rc to allow long periods of operation in the most severe conditions.
  4. The Xactrol® product group unites ValvTechnologies’ zero-leakage technology with special designs that allow rotary modulating control. From the Mark I’s design that features a characterized upstream seat to the Mark III’s precision engineered stacked disks, the Xactrol® allows the customer to combine precise flow control with tight shut-off. The Xactrol® is typically used in applications where minimum flow and relatively high differential pressures are required.

  • Superior failure resistance and reliability. Benefit: Enhanced process safety
  • Constant packing load maintained with four-stud, live-loaded packing assembly. Benefit: Increased safety, enhanced process efficiency, environmentally friendly
  • Custom-engineered. Benefit: Process optimization
  • Consistent flow-rates. Benefit: Reduced fluid costs
  • Control trim made from extremely hard components. Benefit: Reduced wear, increased life of the valve
  • Zero-leakage shutoff. Benefit: Enhanced process safety, increased efficiency
  • Resistance to small entrained solids. Benefit: Lower maintenance costs, increased reliability

Case Study: Overcoming Resistance to Change

Location: Kuwait Xactrol_with_controlled_seat
Plant type: Desalination
Application: Low pressure steam distillation control
Product: Xactrol® Mark I

Situation: The customer’s plants were constructed over thirty years ago and consist of eight oil fired Mitsubishi 300 MW units with two desalination units per boiler, totaling 2400 MW and sixteen desalination units. Al Zour South II is two years old and is configured with eight Siemens combined cycle unit totaling another 2000 MW with sixteen desalination units. Total plant output is 4400 MW and 32 distillation units.

The low pressure steam distillation control valve (PC-602) is currently a trunnion-mounted ball valve design and plant management is reluctant to change to anything else that would cause a piping modification. Two well-known control valve competitors fought aggressively for this replacement but ran into the same challenges facing all organizations in that region: the reluctance and resistance to change. This time resistance to change was an advantage for ValvTechnologies.

ValvTechnologies was granted permission to enter the control room to monitor PC-602 in operation and interview the staff. We observed PC-602 on two distillation units and found it to operate at a very stead state condition at full load, 87.9 & 90% open. The operations staff stated that the current valve binds in the closed position as steam is admitted to the distillation unit. They would crack the valve off the seat prior to start up to avoid the problem. Secondly the valve would bind between 60 – 70% during start up forcing them to dump 90 tons of steam per hour or come off-line. The unit then must be removed from service and cooled to allow maintenance staff to free-up the valve.

Requirement: The main concern with station management was that the new valve should not bind in any position. As this is a control valve, the zero leakage warranty is not the main concern of the client. They were more concerned with having a 48 month warranty to ensure the new valve would not bind during service. After some discussions the client agreed to a compromise of a 24 month warranty that the valve would not bind. The rational for this decision was based upon their experience that the current valve took a couple of years before the binding issue developed into a serious problem.

Solution: The proposed solution is the Xactrol® Mark I with a 24 month mechanical warrantee as end-user wants to make sure that our valve will not bind. Our valve is planned to be installed in January 2014 and if successful after one year, we will have the opportunity to replace a further 16 identical valves.

Mark I Design
  • Designed for minimum/normal flow control conditions
  • Variety of characterized upstream seats available
  • Engineered to meet your control needs
Applications

The Mark I is designed for high-pressure and/or erosive services. Applications include: vents, drains
and blow downs among others.

Trim Available:

  • Mark I – single stage pressure drop
  • Mark II – single stage pressure drop, continuous blowdown
  • Mark III – multi-stage pressure drop

Actuator mounting
